Transformator koil cor

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers

Semua Kategori

Transformator yang dipasang pada tiga fase

Transformator yang dipasang pada pad fase tunggal

Transformator yang Dipasang di Tiang

Transformator Tipe Kering Tiga Fasa

Transformator Isolasi Tiga Fasa

Transformator Kontrol Industri

Transformator Kontrol Fase Tunggal

Transformator Isolasi Toroidal

Transformator Otomatis Tiga Fasa

Reaktor Tiga Fasa

Hubungi Kami

Mr. Steven

steven@winley-electric.com

86-18650108051

Hubungi sekarang

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers

Nama merek:	WINLEY
Nomor Model:	SCB10-2500/22
MOQ:	1Satuan
harga:	$5000-$100000
Rincian kemasan:	kasus kayu lapis
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE,ISO

Jenis:

Transformator koil cor

Kapasitas terukur:

2500kva

Tegangan Primer:

22000V

Tegangan Sekunder:

Metode Pendinginan:

AN/AF

Kelas isolasi:

F (155℃)

Kenaikan Suhu:

Standar:

AS60076

Menyediakan kemampuan:

1000Set/bulan

Menyoroti:

2500kva Cast Coil Transformer

Epoxy Resin Cast Coil Transformer

Deskripsi Produk

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers AS60076 Standard

Cast coil transformers are the ideal solution for voltage distribution in harsh environments with airborne dust or high humidity. The windings are vacuum-cast into a solid block of epoxy resin, providing the highest level of protection for the windings.

Product Photos

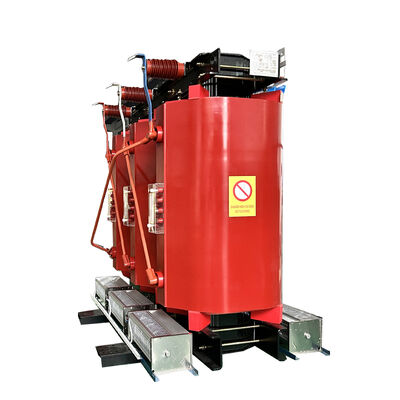

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 0

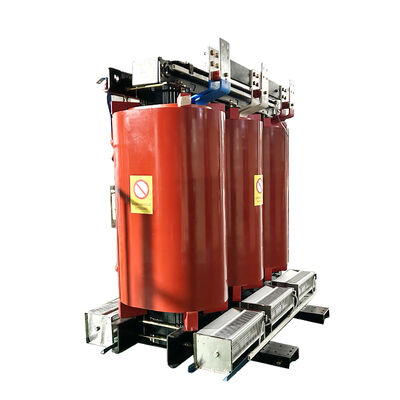

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 1

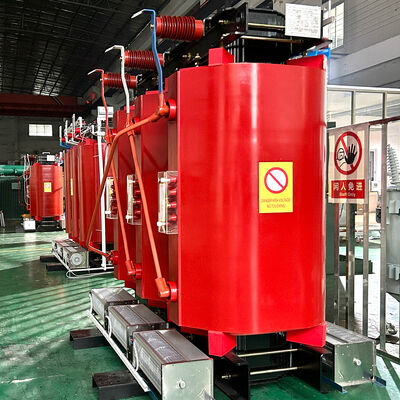

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 2

winley electric’s cast coil transformers are designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI, DOE, AS60076,and IEEE as applicable.

Main data

No.	Particulars	Unit	Specification	Remark
1	Type	~	cast resin, dry type
2	Rated capacity	kVA	2500
3	No. of Phase	~	3
4	Primary voltage	V	22000	Delta
5	Secondary voltage	V	433	Wye
6	Tapping type	~	off-circuit tapping
7	Tapping type	%	±2*2.5%
8	Cooling method	~	AN/AF
9	Rated frequency	Hz	50
10	Vector group	~	Dy1
11	Insulation class	~	F
12	Temperature rise	K	100
13	Standard	~	AS60076

Technical drawings

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 3

Features

Self Cooled (AN/AF)
50/60Hz
Aluminum/copper Windings
100°C Temperature Rise
Primary taps +/-2 x 2.5%
Terminal Bus Stubs Suitable For Cables
NEMA 2, 3R, 4, 4X Enclose
Dial or Digital Thermometers
Anti-Condensation Strip Heaters
Anti-Vibration mounting to reduce transformer hum (sound level)
Distribution, Intermediate or Station Class Surge Arresters
Provision for Buss Duct Entry
Fully Insulated Buss
Mimic Buss

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 4

Cast Coil Transformer Benefits

Low to no maintenance
Self-extinguishing insulation system
Can be used in a variety of environments
Overload capable and fan options for extra cooling
Lower installation costs than oil-filled transformers

Production process

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 5

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers 7
